Outdoor Speaker
Working Process
SLA 3D Printing

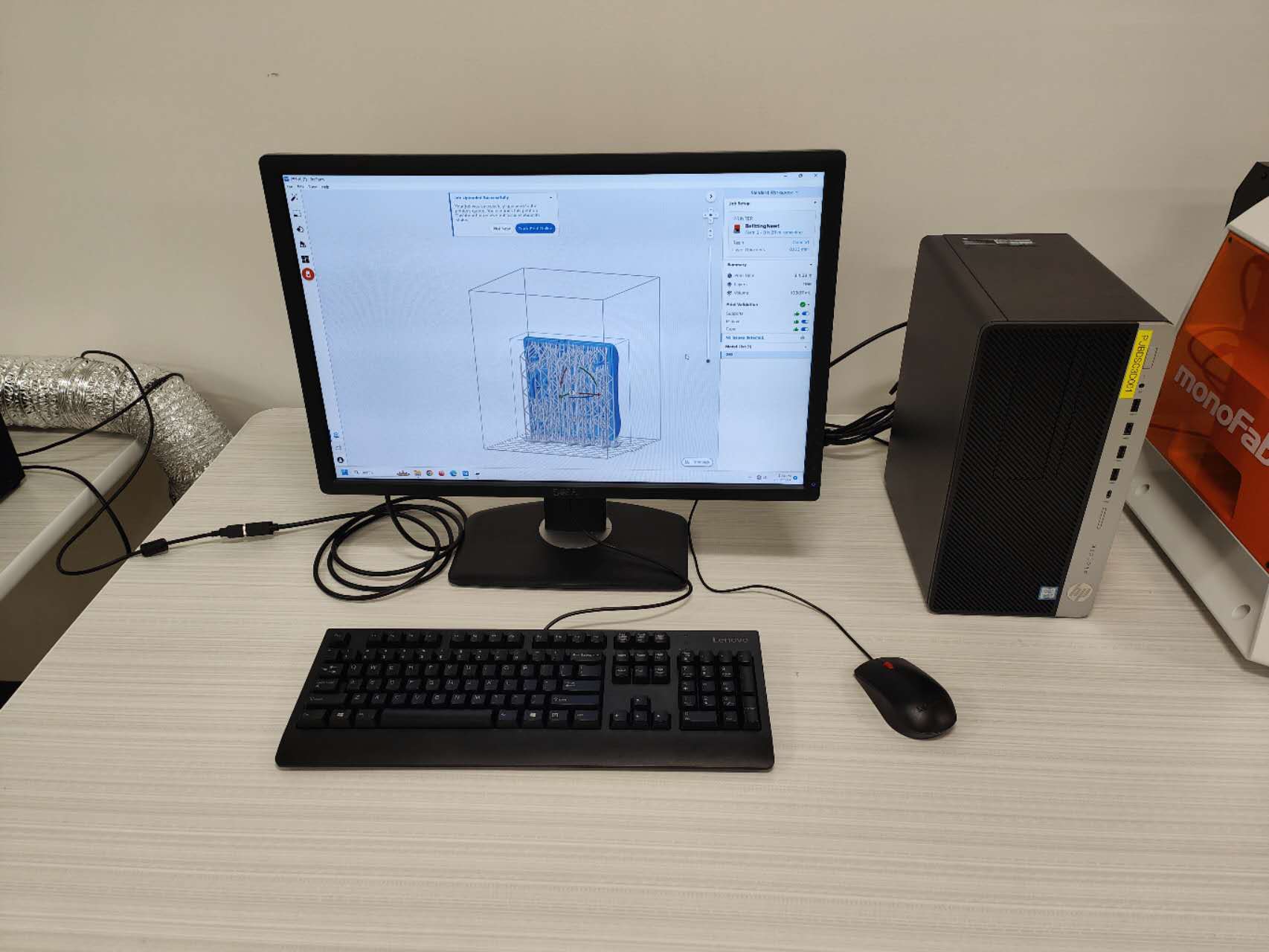

Slicing software
After training at the Digital Scholarship Centre (DSC), I used SLA slicing software for printing, and I need to consider some unique challenges in SLA printing, such as cupping.

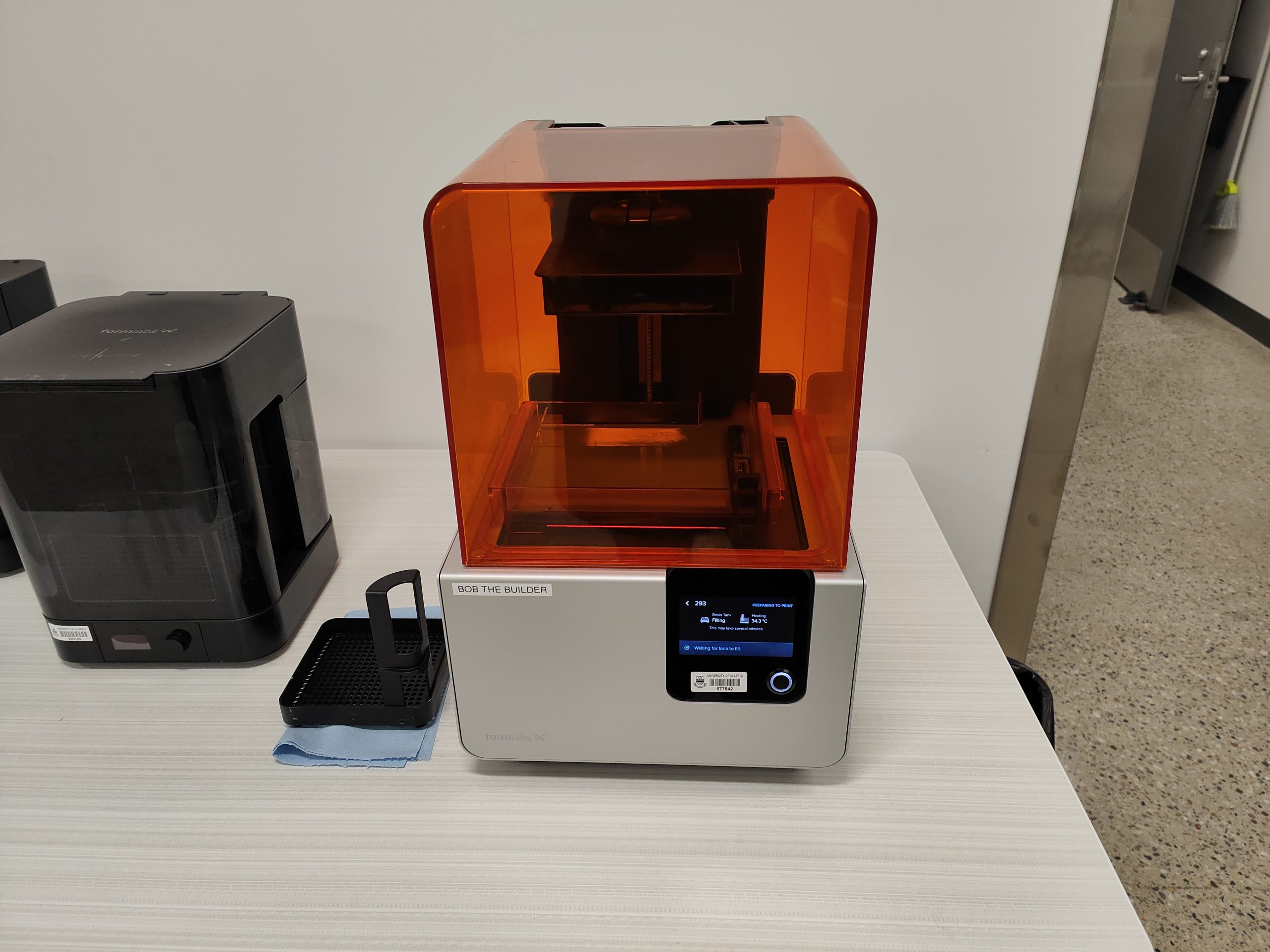

Formlabs Form 2 3D Printer
After starting the print, leave once the first layer is successfully printed, then come back the next morning for washing, curing, removing supports and sanding.
FDM 3D Printing

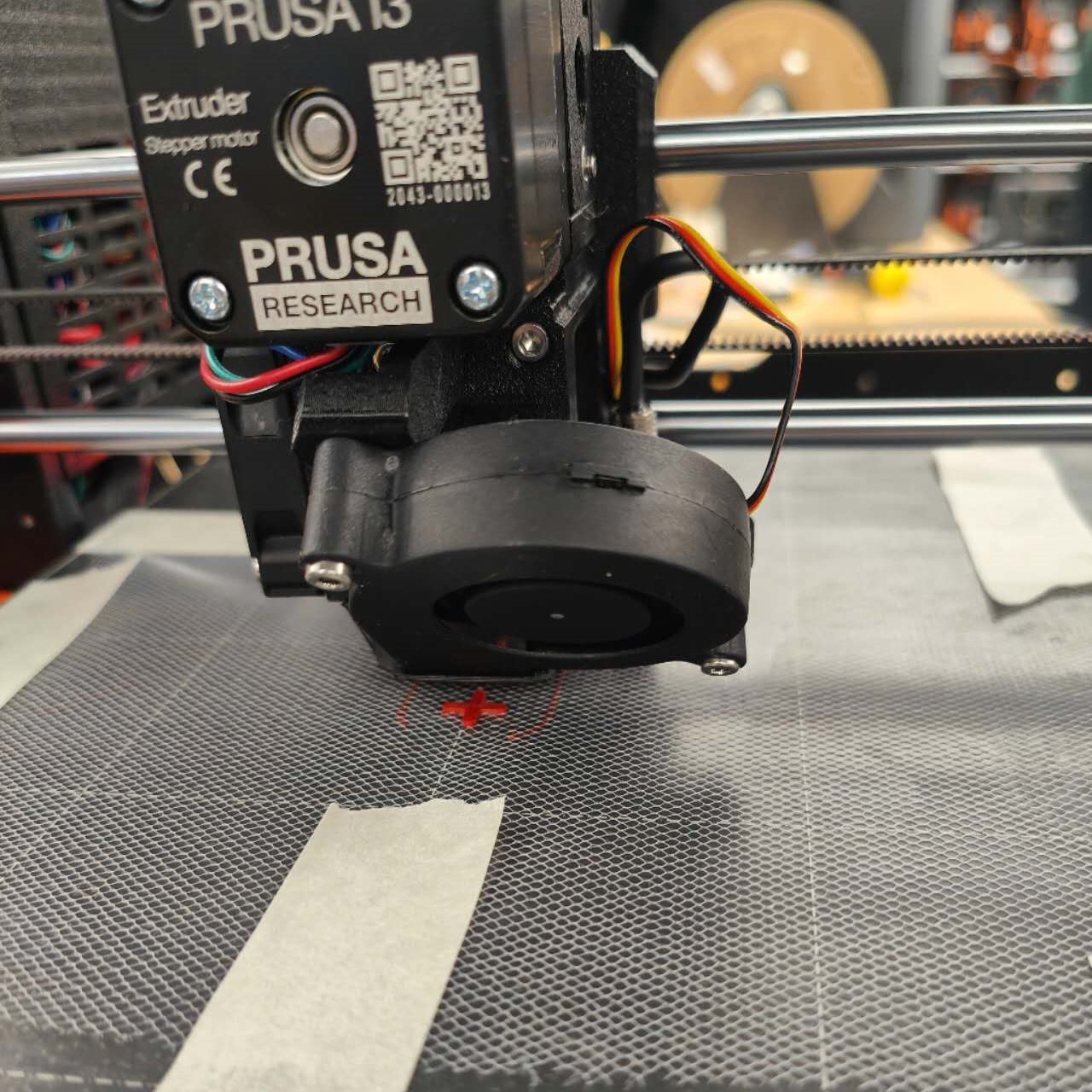

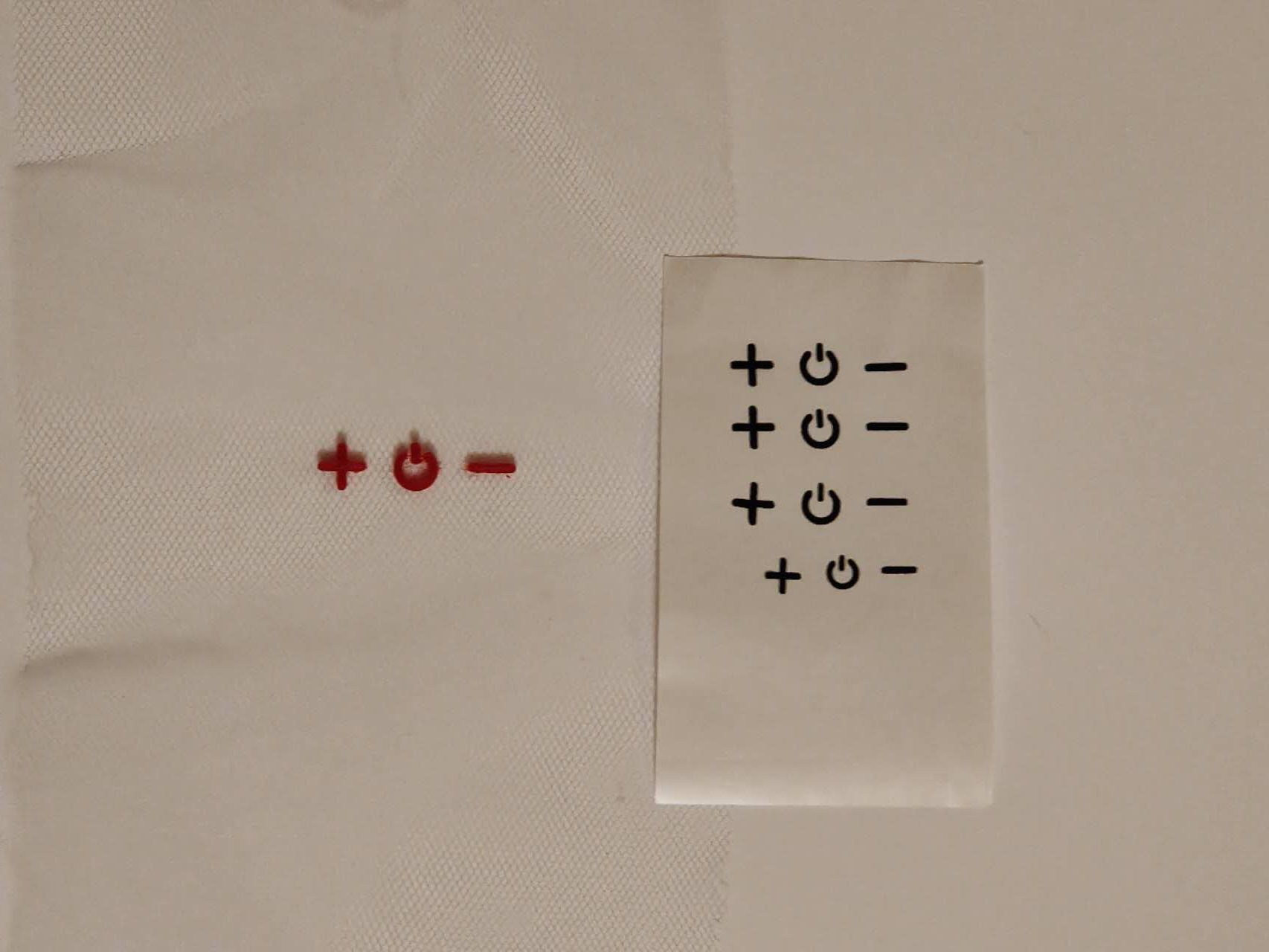

Printing on the fabric
During the printing process, I pause the printing, attach the cloth to the base, and then resume printing. This ensures a strong bond as the layers of PLA material melt together.

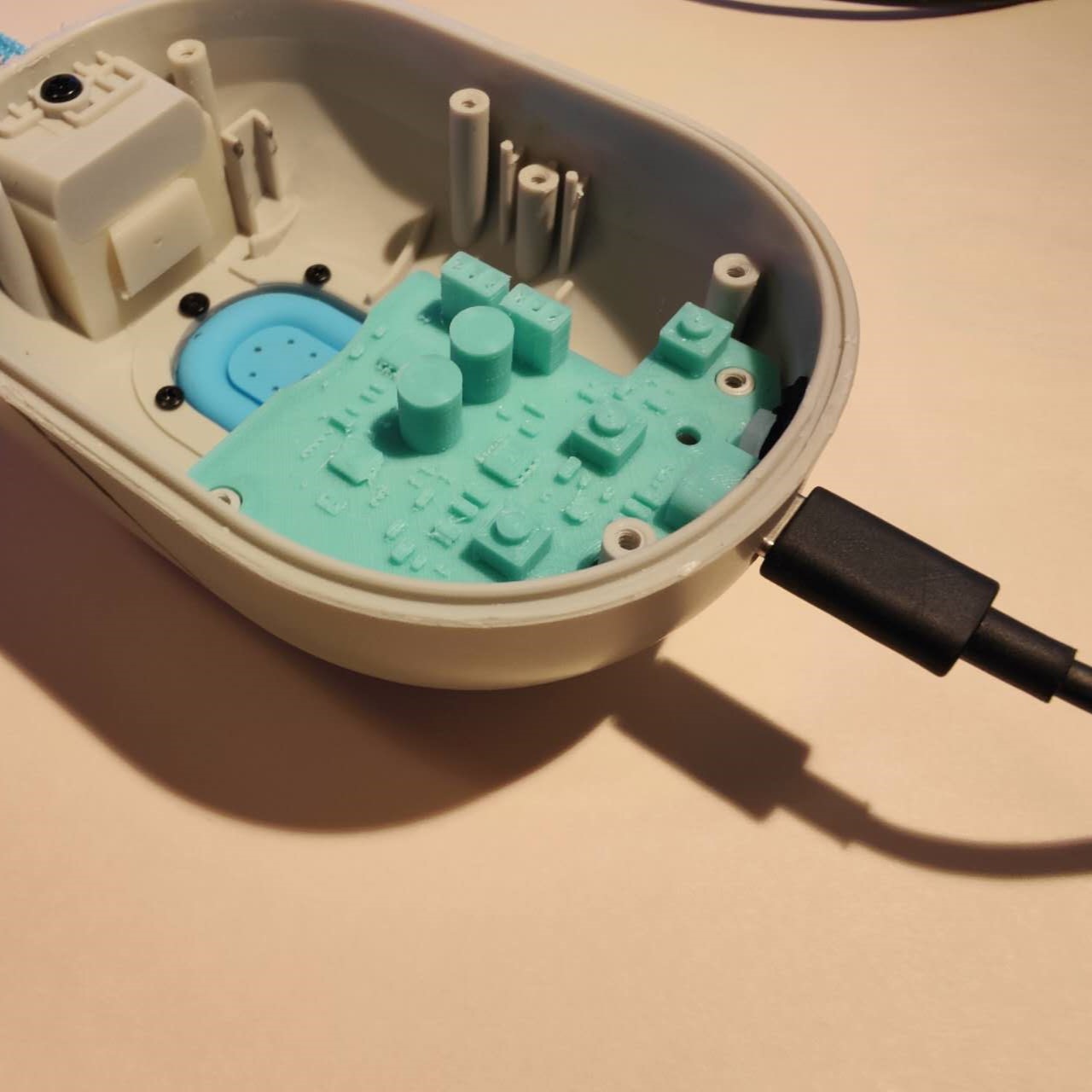

Test accuracy
I achieved precise replication of the motherboard to obtain the actual dimensions of the circuit board, and shared it with classmates for their use.
Fiber Laser Cutter

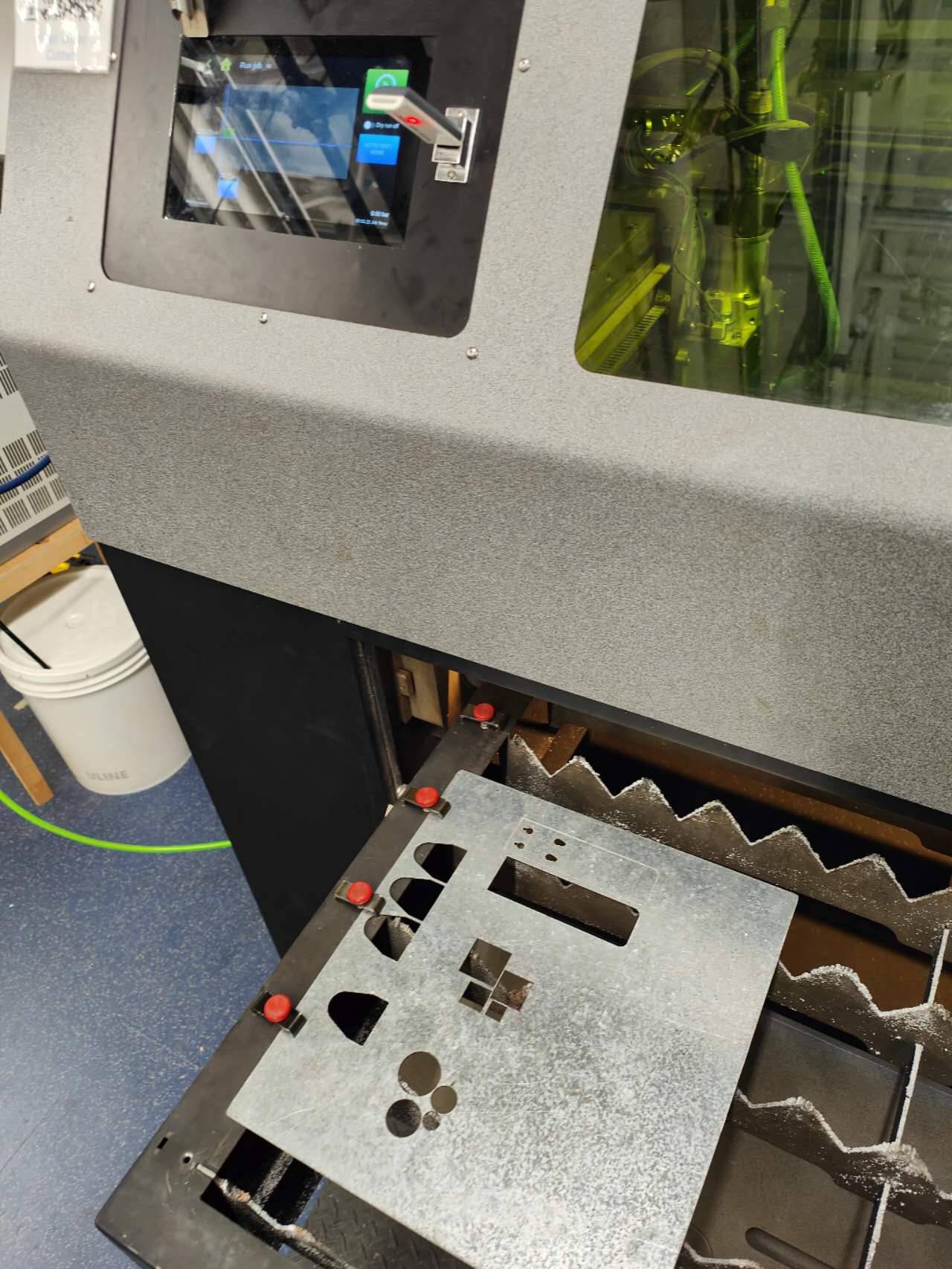

Fiber laser cutter
Thanks to assistance and equipment at UofA, I was able to use a cutting machine and bending sheet metal to obtain the iron pieces I desired.

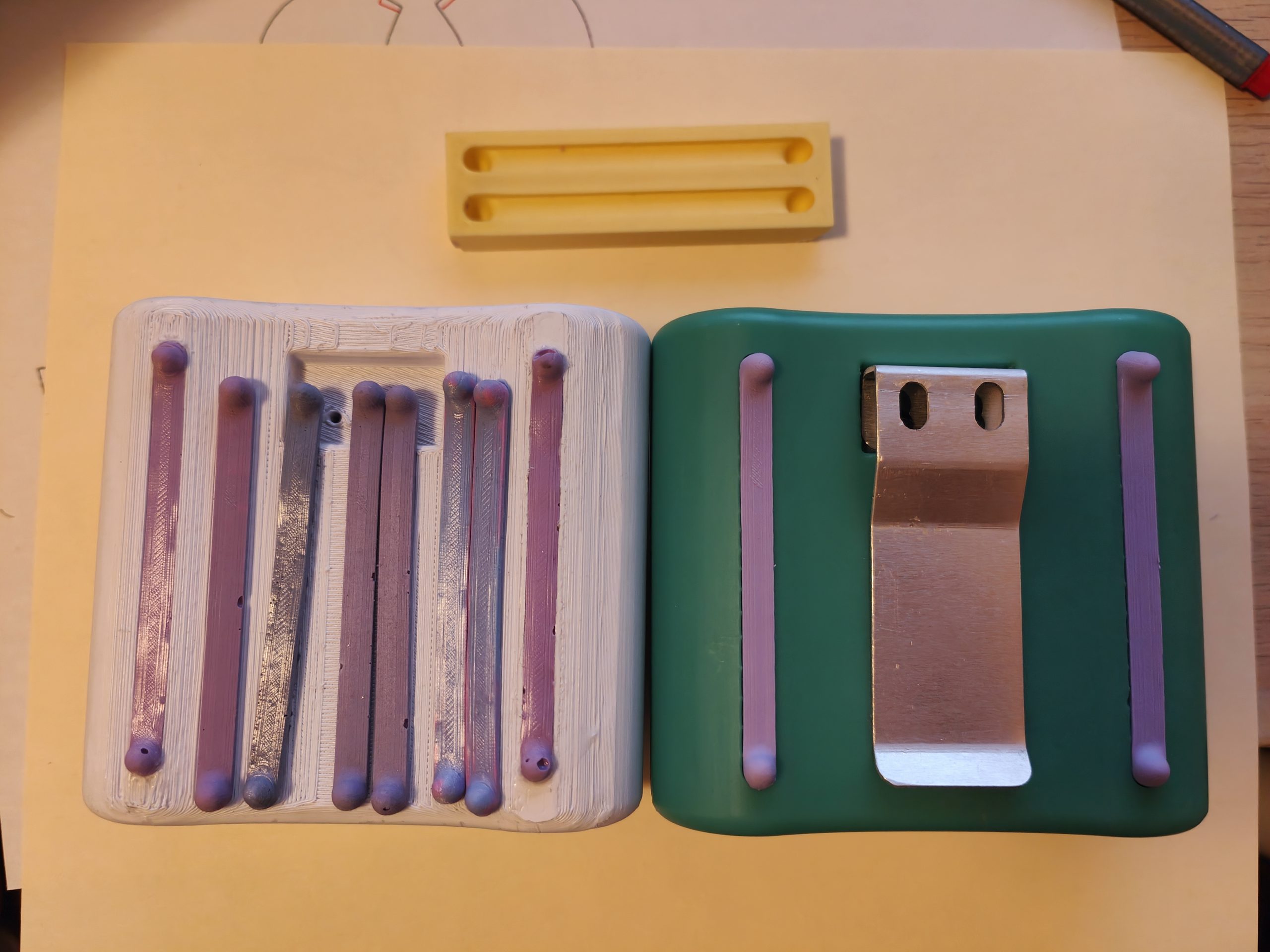

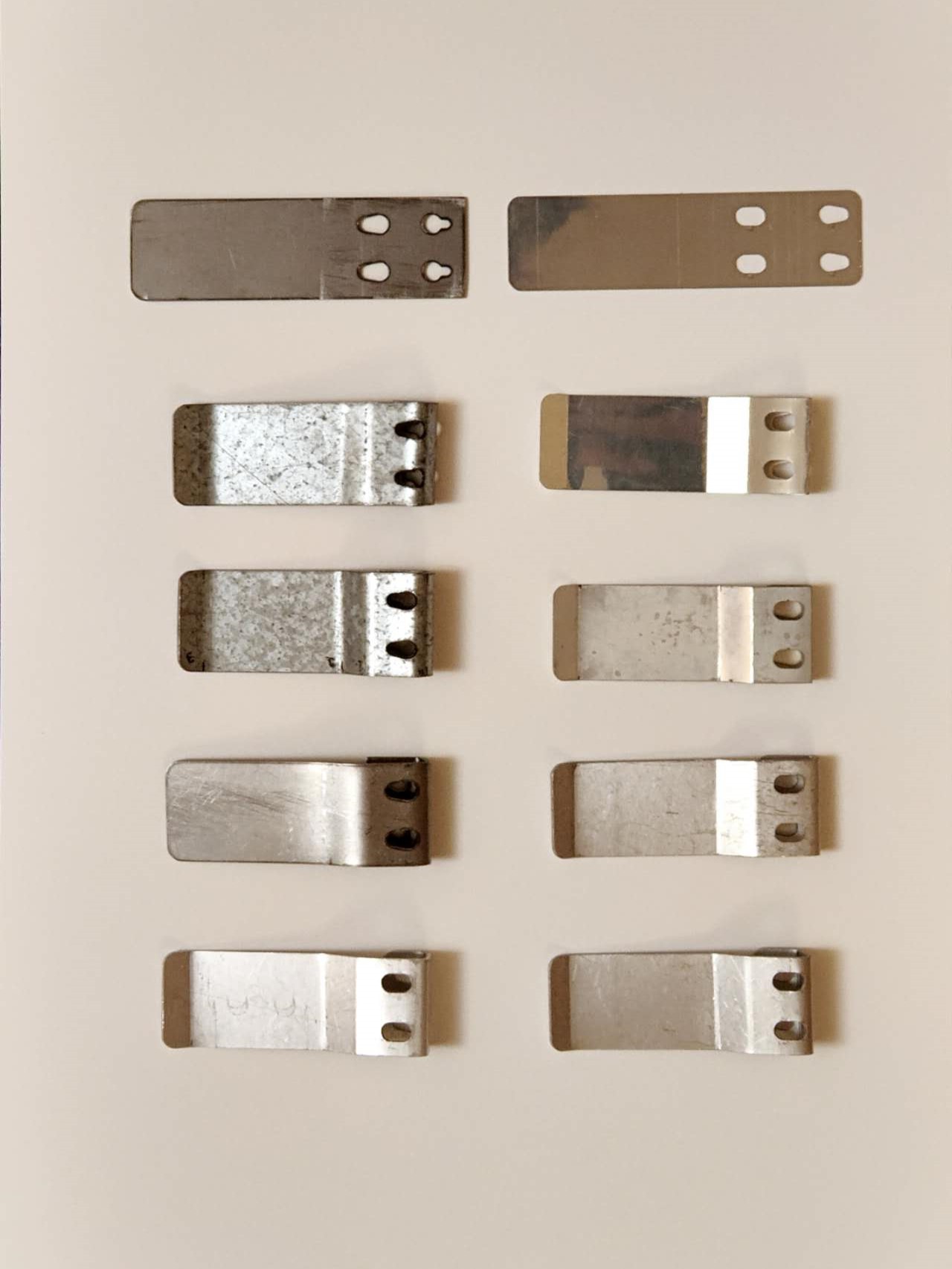

Extensive testing
Bending with different thicknesses and materials, and using various tools, finding the balance between elasticity and durability.
Mold Making
Foot mat mold
I create designed molds through 3D printing. Then, I pour liquid silicone into the molds, let it cool, and obtain the desired foot pads.

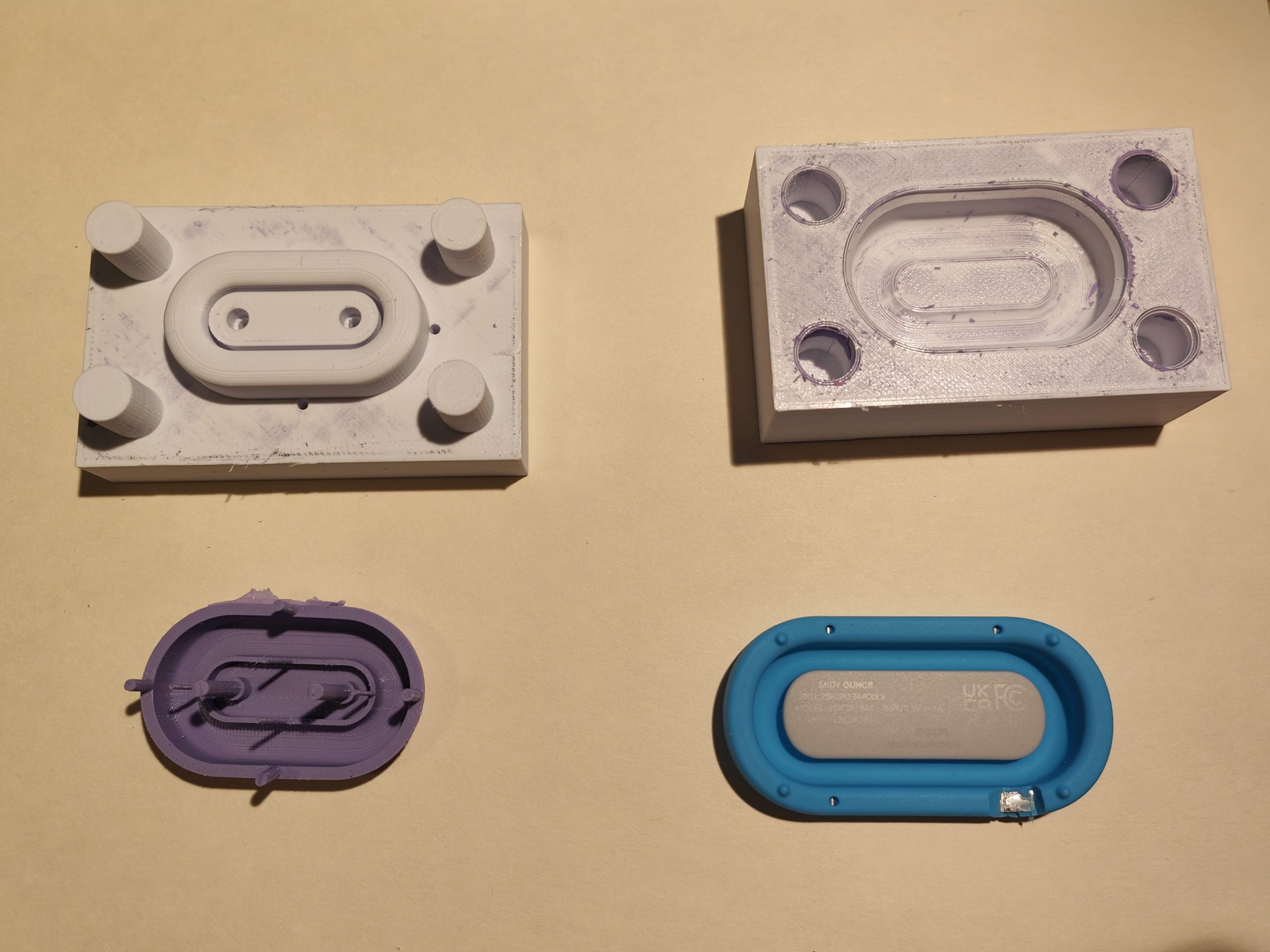

Subwoofer mold
The process of making diaphragms is similar to the production of tires, where shaping is achieved through the compression of upper and lower molds.

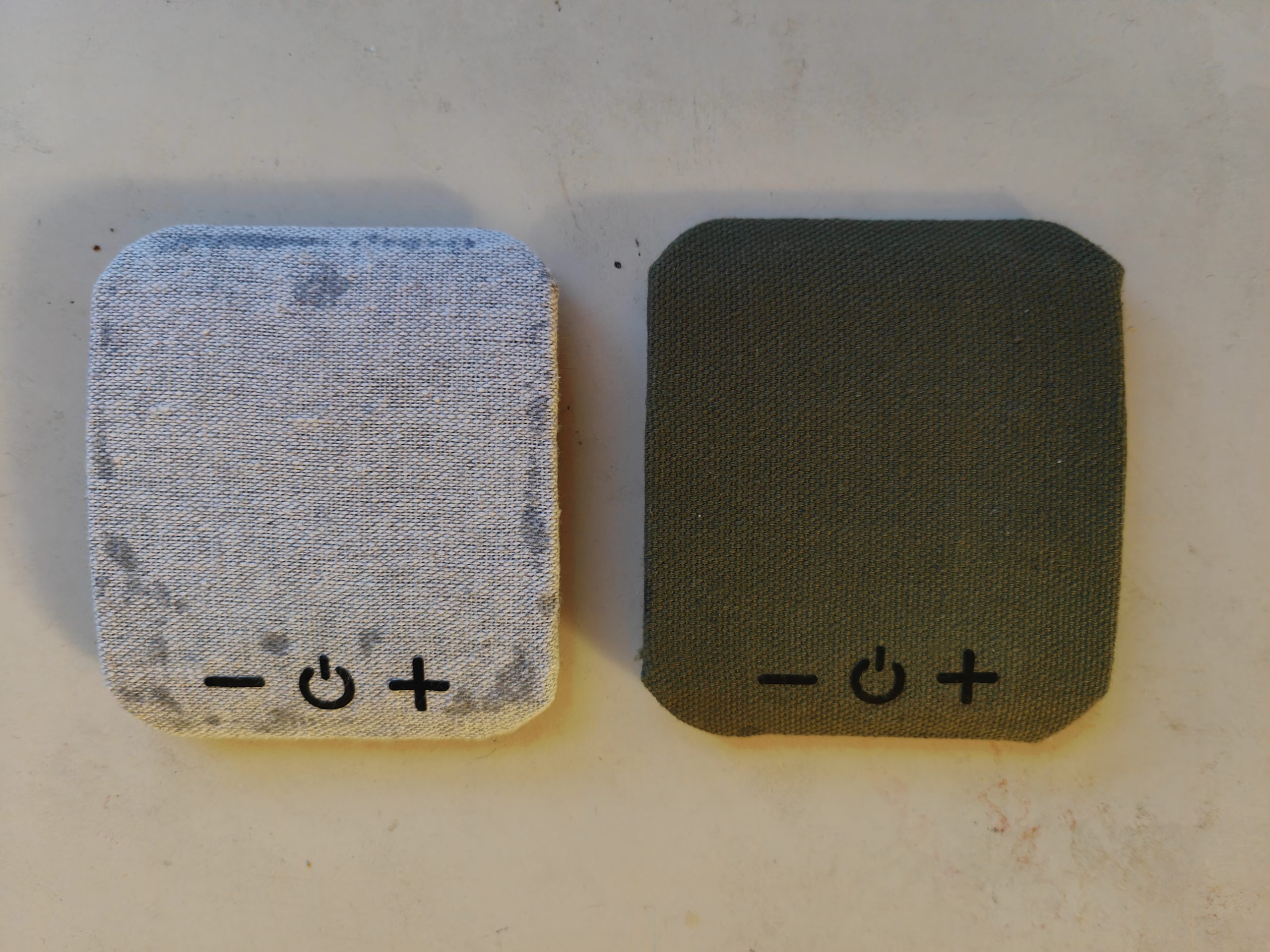

Fabric making
Fabrics text
By testing various fabrics, I gained insights into how different materials impact both sound quality and tactile sensation.
Subwoofer mold
In the end, I chose vinyl over 3D-printed parts, as I discovered that printing on fabrics without coarse perforations was impractical.
3D interactive web page

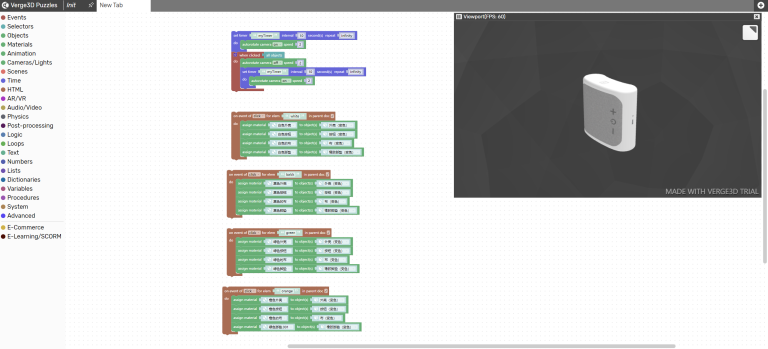

Verge 3D
Match the action to the effect

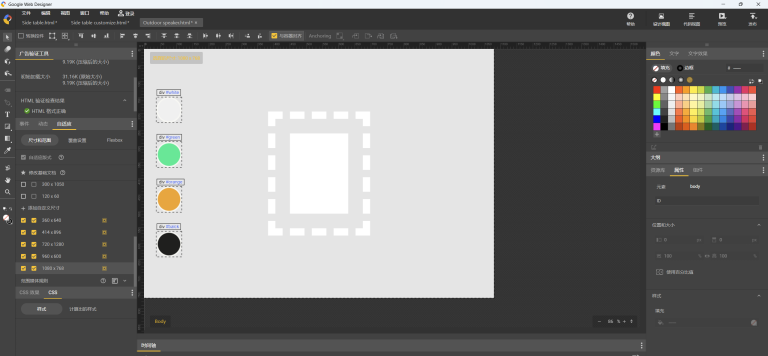

Google Web Designer
Design interactive buttons for iframe (3D model page)
